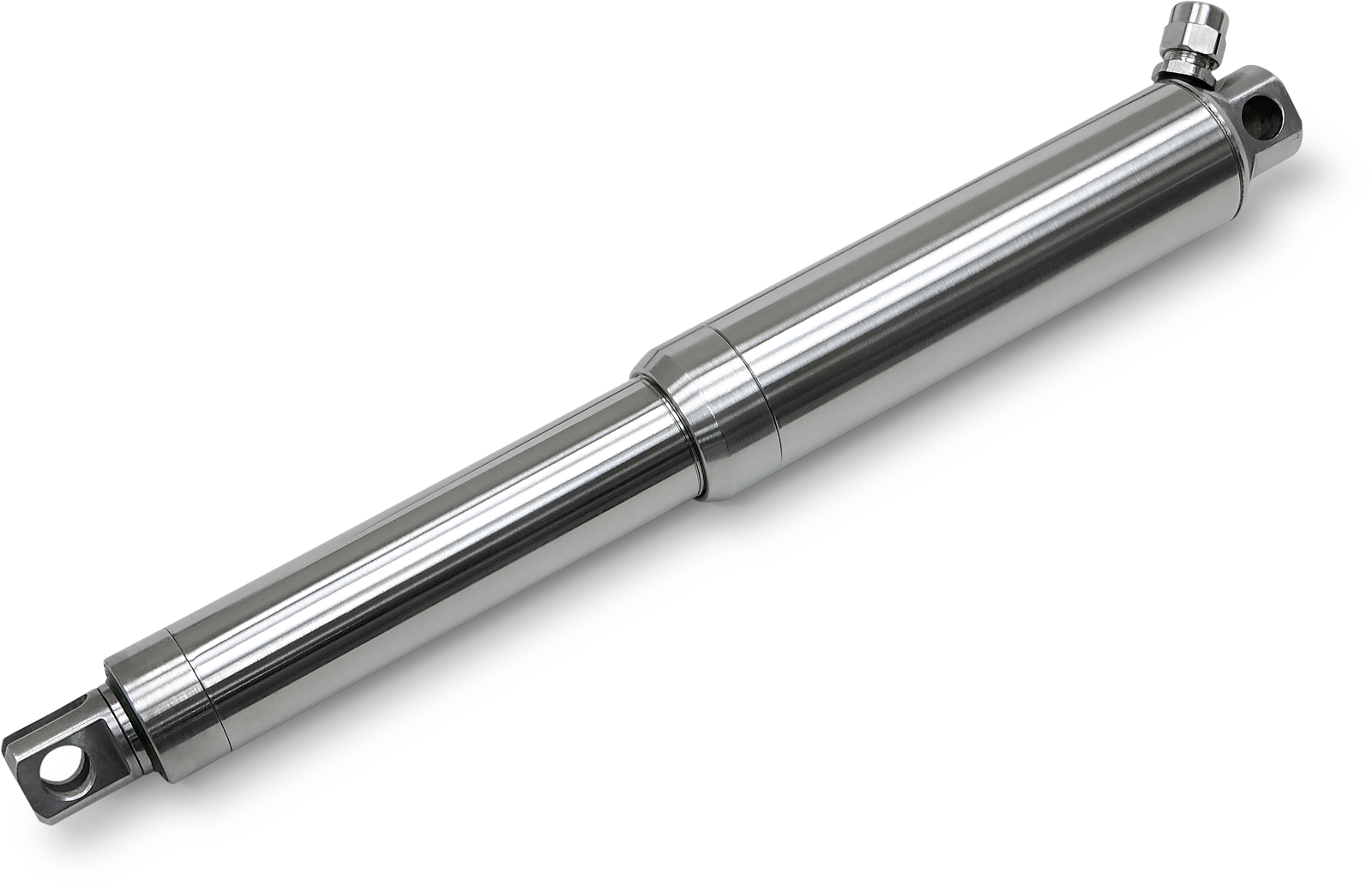

Electric actuator VLD12 (DC motor)
The VLD12 is a compact, small-sized linear actuator designed specifically for applications with limited space.The VLD12 is a compact, small-sized linear actuator designed specifically for applications with limited space.In addition to the high IP protection level, all parts are made of stainless steel 1.4301. This linear actuator is extremely corrosion resistant and therefore e.g. suitable for applications in the food industry or maritime technology.
Typical areas of application
• Industrial motion
• Food engeneering
• Naval architecture
Features
• Voltage of motor | 12 V DC or 24 V DC |
• Max. load | 1500 N in push / 1500 N in pull* |
• Max. speed at no load | 17.4 mm/s |
• Max. speed at full load | 5.0 mm/s* (with 1500 N in a push or pull condition) |
• Stroke | 50 ~ 400 mm |
• Min. installation dimension | stroke+187 mm |
• IP rating | IP66, IP69K |
• Material | stainless steel 1.4301 |
• Duty cycle | 10 %, max. 2 min. continuous operation in 20 min. |
• Standards, directives | CE Marking, EMC Directive 2014/30/EU |
• Operational temperature range | -20 °C ~ +70 °C |
• Option | without Hall sensor |
Extremely corrosion resistant. |
*depending on the gear ratio
Subject to technical changes and errors excepted.
