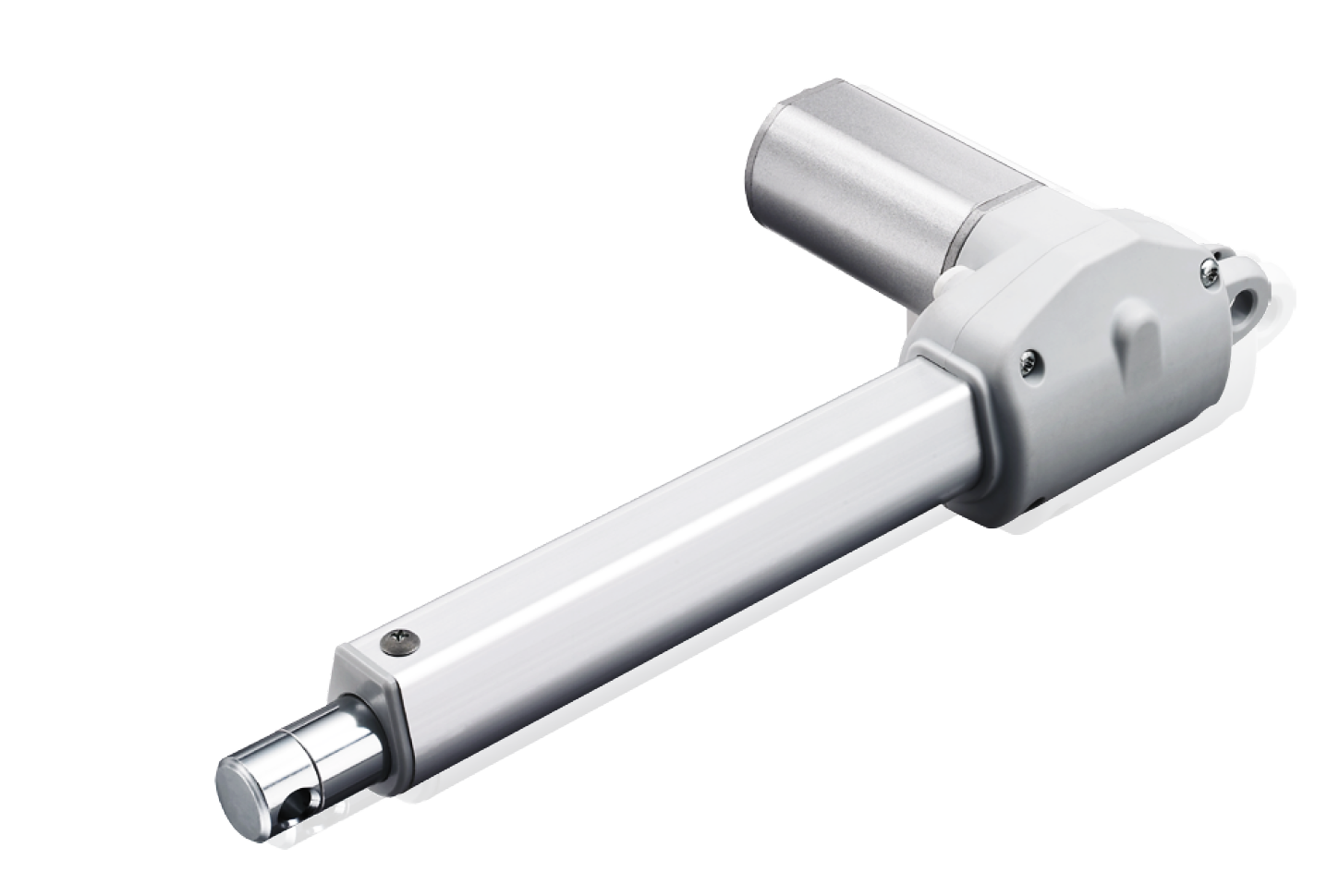

Electric actuator TA9 (DC-Motor)
The TA9 series linear actuator was designed as an economical, compact solution specifically for the furniture industry where force cannot be sacrificed. This linear actuator is designed with a gear box, molded with a specially formulated plastic material which allows the TA9 to support load ratings up to 2500N.
Typical areas of application
• Comfort motion
• Ergo motion
Key figures
• Voltage | 12 V DC or 24 V DC |
• Max. load | 2500 N in push / 1000 N in pull* |
• Max. speed at full load | 24.5 mm/s* |
• Min. installation dimension | stroke+140 mm |
• Color | black or grey |
• IP rating | up to IP66 |
• Standards, directives | EMC |
• Operational temperature range | -5 °C ~ +45 °C |
• Option | Hall sensor(s) |
... where force cannot be sacrificed. |
*depending on the gear ratio and the motor
Subject to technical changes and errors excepted.
